Europe
Energy
Efficiency
and
Comfortable
Living
on
a
Challenging
Terrain

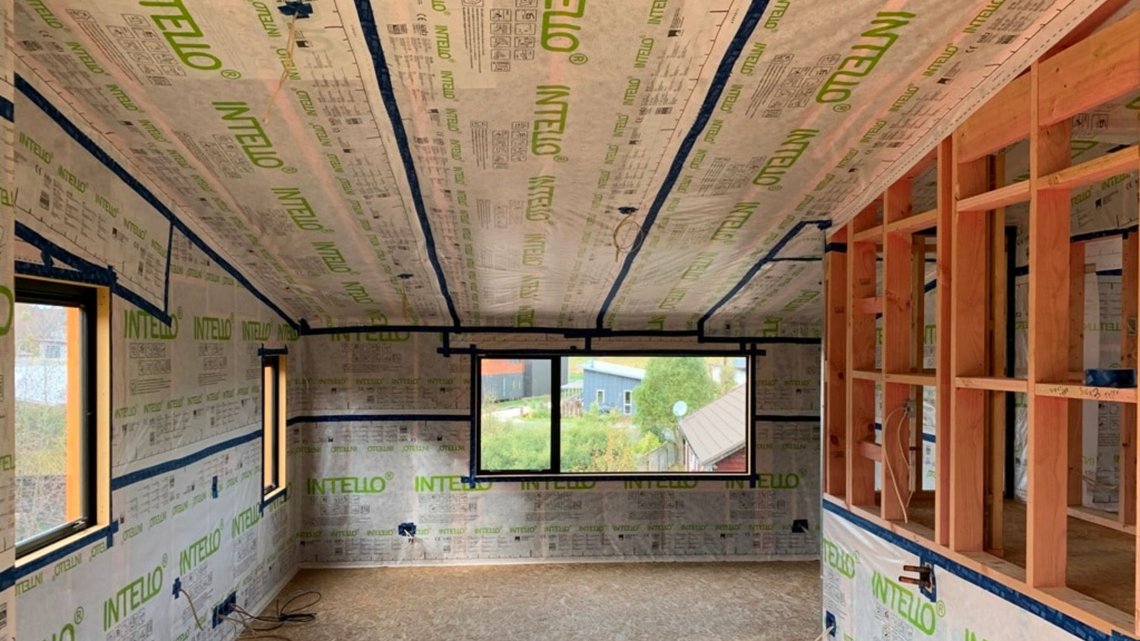

This home is the designers’ response to proposed new insulation requirements and exceeds the regulations in interior comfort. pro clima INTELLO® PLUS was chosen to create an airtightness and vapour control layer on the inside of the building envelope.

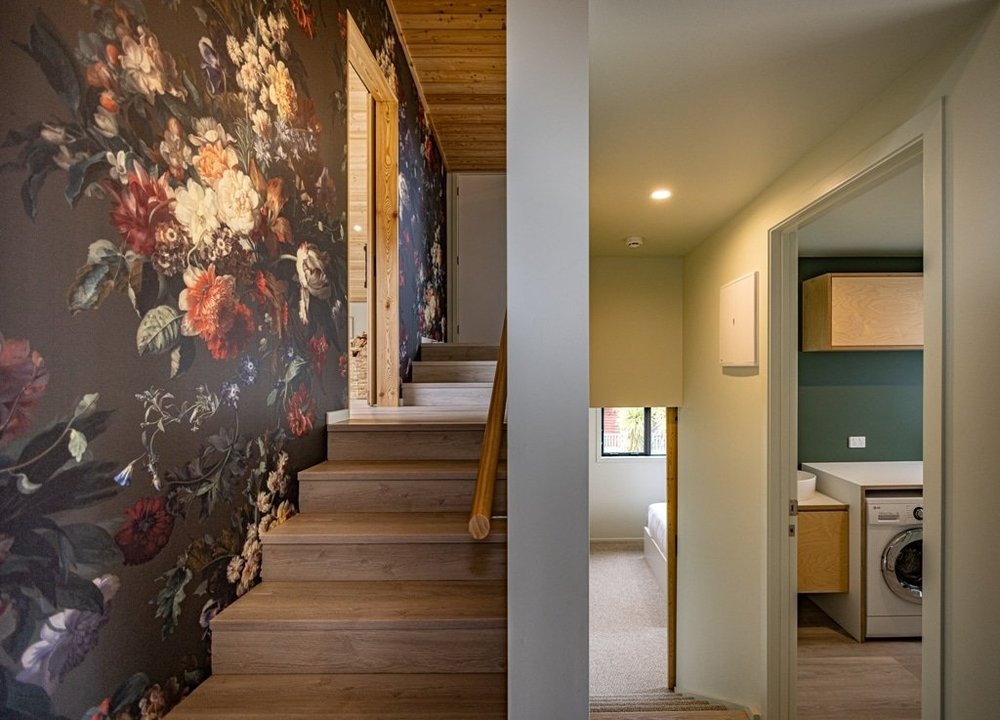

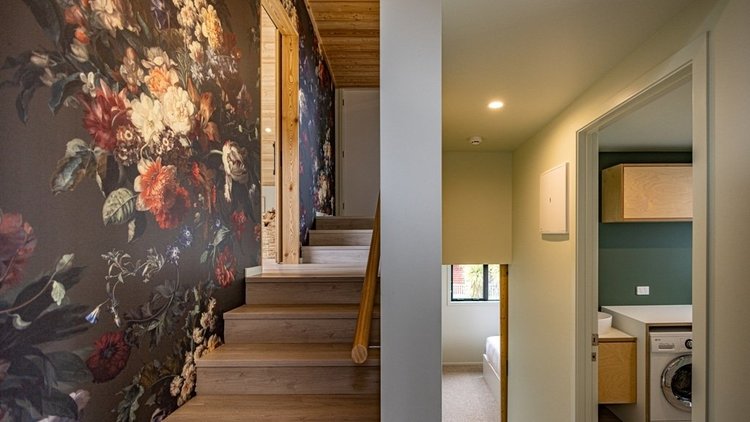

This project started with one of those challenging sections that nobody dares to take on. The small (378 m²) hill site falls 6.5 m over roughly 20 meters. To take full advantage of the site, views and to reduce earthworks to a minimum, the creative design by architects at MnM Design embraces the landscape with 7 different floor levels that are down the hill. All levels are connected by (short) sets of stairs. Through this design, the house offers different views on every level and in each direction, from a rural outlook to a view of the majestic Mount Ruapehu. This is a holiday home that will certainly keep you fit.

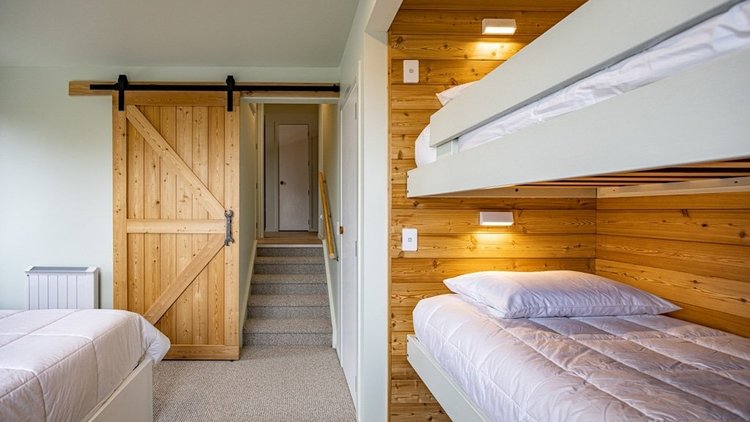

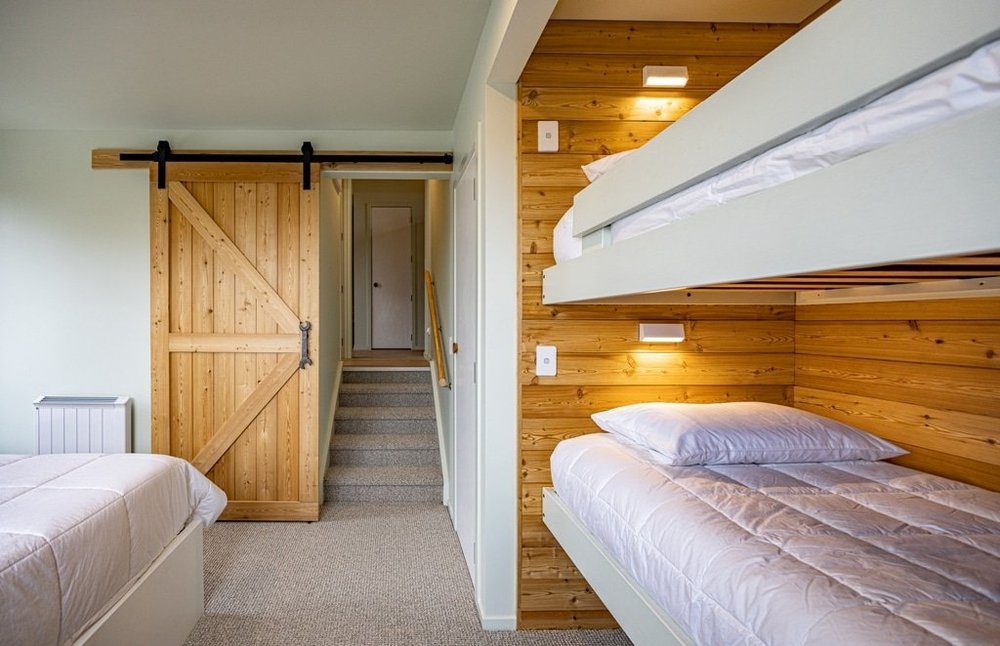

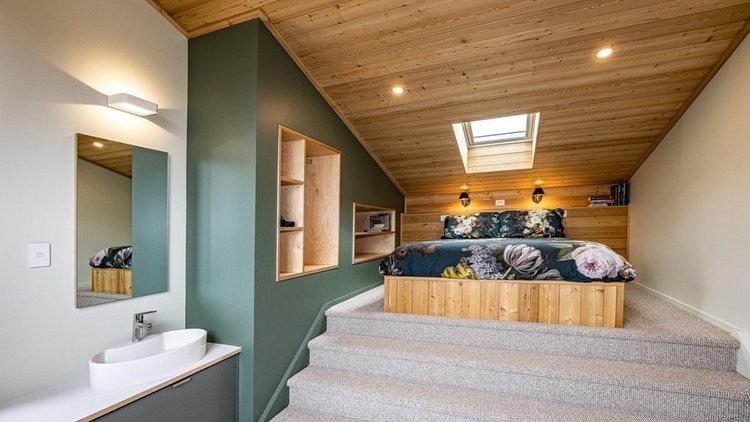

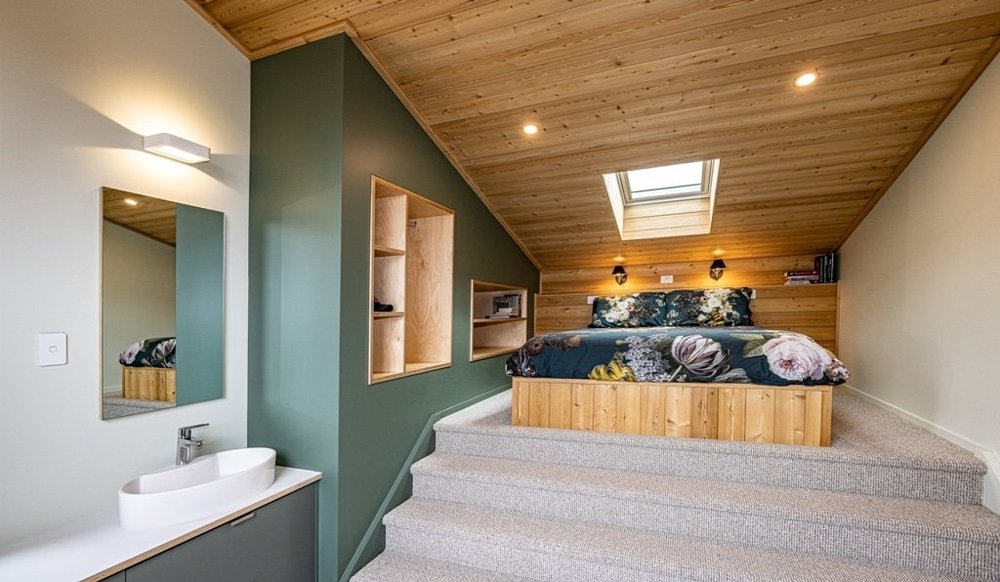

A custom home builder RT Construction from Ohakune executed this challenging project. The two slices of this building have roofs that go opposite ways. One segment houses the living and dining rooms, kitchen, and garage. The other segment has bedrooms and bathrooms. The main staircase cuts through the middle of both segments.
How was this project implemented?

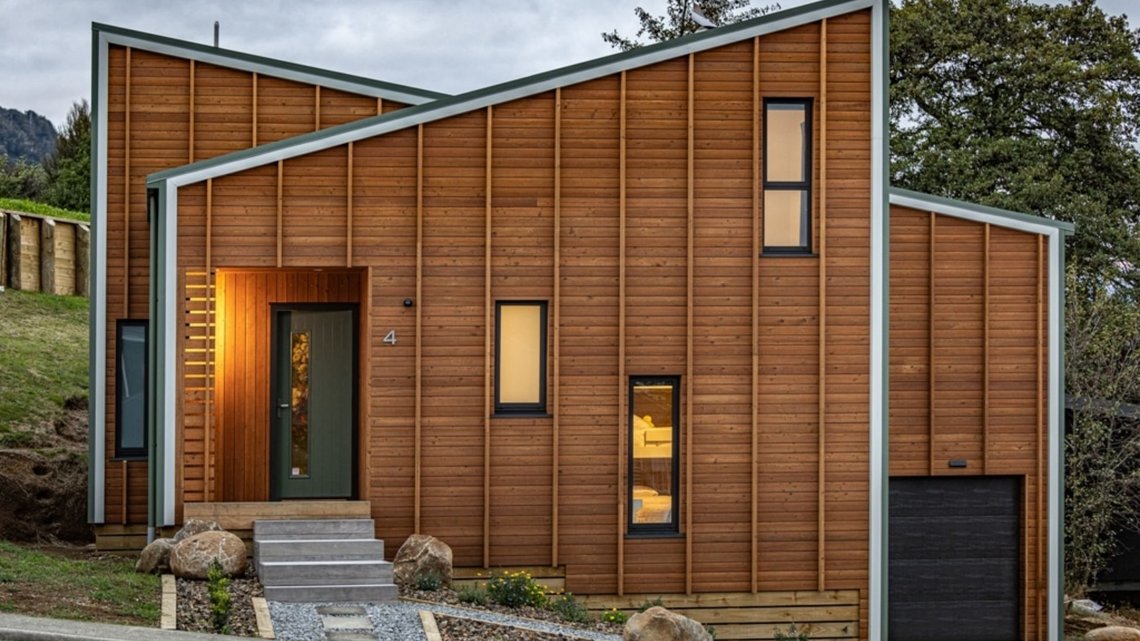

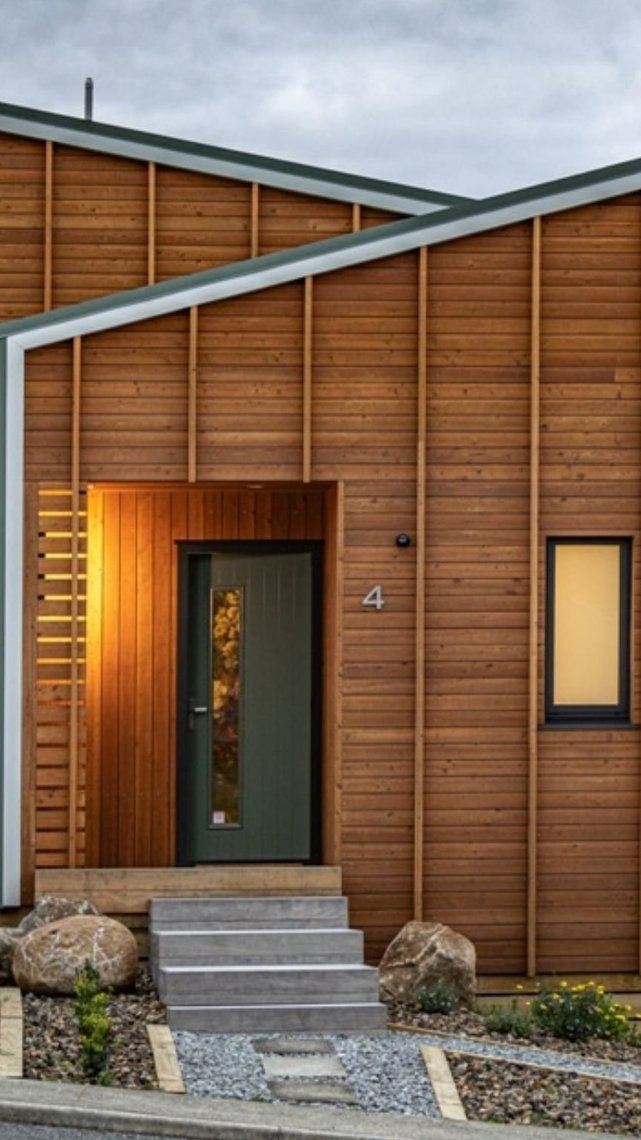

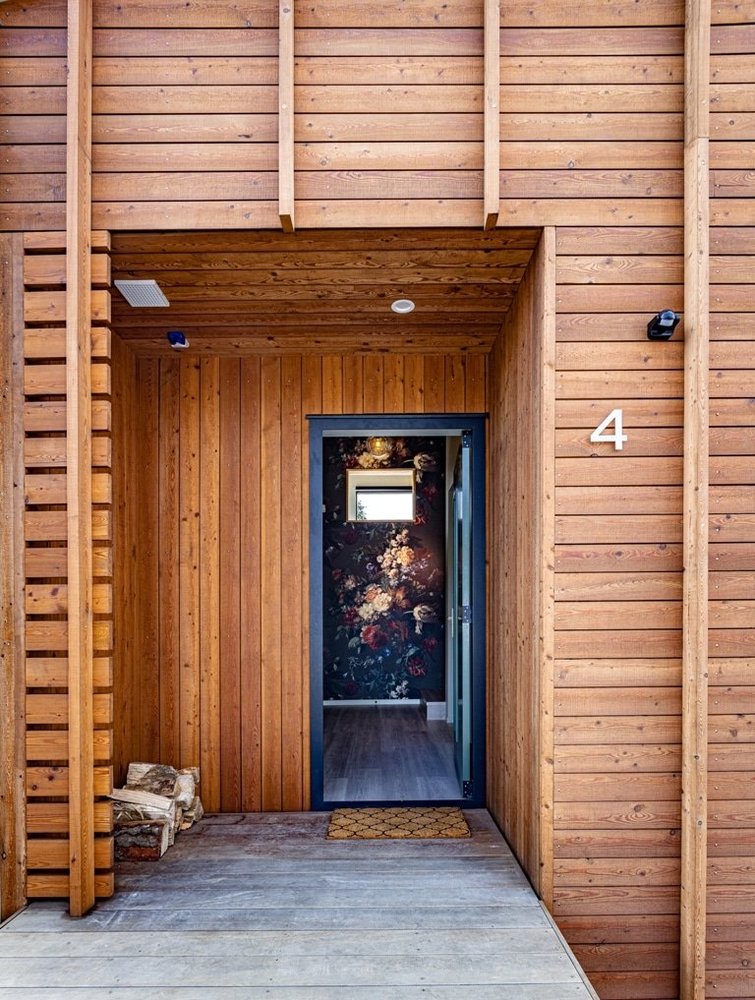

Exterior cladding is a combination of a trapezoidal metal and horizontal larch weatherboard. The metal has a soft green hue that represents the colours of wilderness & nature and goes well with the orange-tinted timber. Protruding vertical battens over a background of horizontal timber weatherboards were used to emphasize the height and shape of the house. To bring more depth into the design, white trim was added around the facade.
Energy efficiency and comfortable living were high on the agenda when detailing the building envelope. This house is the designers’ response to proposed new insulation requirements but exceeds the regulations in interior comfort. With special detailing around rebated, thermally broken aluminium joinery, hand-built oversized timber framing with removal of thermal bridging and usage of the INTELLO® PLUS intelligent airtightness membrane on the inside of the house. The house relies on its orientation and exterior insulation shield to store the heat. A woodfire has been added for ambience and as a backup for power outage only. A combination of passive ventilation, for when the house is not occupied, and mechanical ventilation activated by a humidity sensor, will keep the house free of moisture.
This is how to take on a challenging terrain!
-
Design and energy modelling: MnM Design
-
Builder: RT Construction
